M365 Data Exporter User Guide

The Mission Lens M365 Data Exporter is a high-performance Go application designed to efficiently extract data from your Microsoft 365 tenant using the Microsoft Graph API.

Overview

The exporter supports extracting the following data types:

Emails: Messages from Exchange Online mailboxes
Teams Messages: Chat messages and channel posts
SharePoint: Documents, lists, and metadata
OneDrive: Files and sharing permissions
Calendar: Events and meeting information
Contacts: Contact information and distribution lists

Prerequisites

Before using the M365 Data Exporter, you need:

Azure AD Application Registration
- Application (client) ID
- Client secret or certificate
- Tenant ID
Microsoft Graph API Permissions
- Mail.Read or Mail.ReadWrite
- Chat.Read (for Teams)
- Files.Read.All (for SharePoint/OneDrive)
- Calendars.Read
- Contacts.Read
- User.Read.All
Admin Consent
- Application permissions require admin consent for your tenant

Installation

Download the Binary

The exporter is distributed as a standalone binary for multiple platforms:

# Linux
wget https://github.com/patchly/mission-lens/releases/latest/download/m365-exporter-linux-amd64

# macOS
wget https://github.com/patchly/mission-lens/releases/latest/download/m365-exporter-darwin-amd64

# Windows
# Download from releases page

Build from Source

git clone https://github.com/patchly/mission-lens.git
cd mission-lens/exporter
go build -o m365-exporter .

Getting Started Walkthrough

This section provides a visual guide to help you get started with the M365 Data Exporter.

Step 1: Launch the Application

When you first launch the M365 Data Exporter, you’ll see the welcome screen:

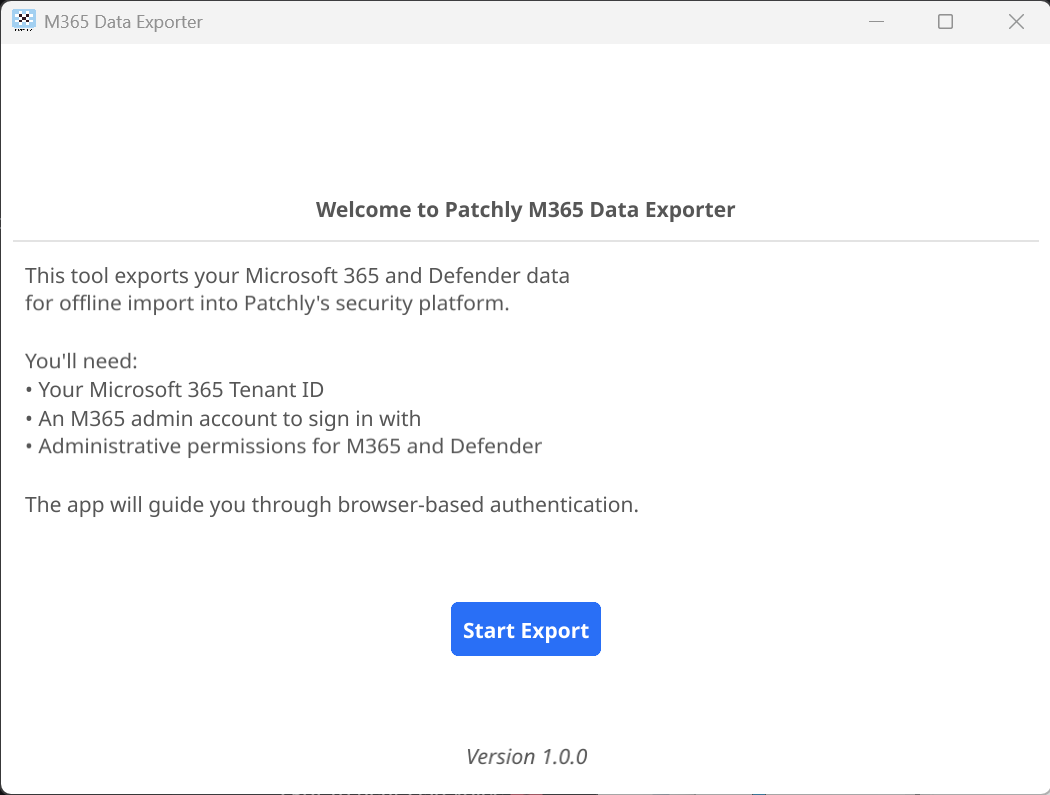

M365 Data Exporter Welcome Screen

The welcome screen explains what you’ll need:

Your Microsoft 365 Tenant ID
An M365 admin account to sign in with
Administrative permissions for M365 and Defender

Click Start Export to begin the configuration process.

Step 2: Configure Authentication

Next, you’ll configure your Azure AD authentication settings:

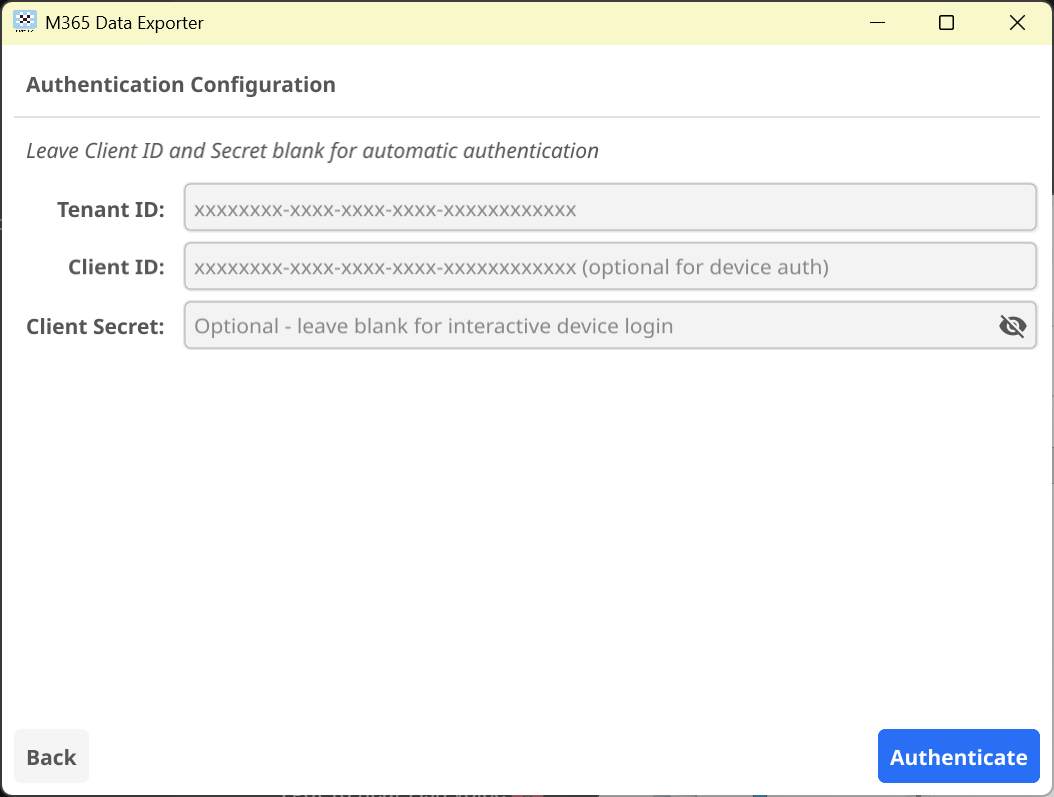

Authentication Configuration

Enter your credentials:

Tenant ID: Your Azure AD tenant ID (required)
Client ID: Optional for device-based authentication
Client Secret: Optional - leave blank for interactive device login

Tip: For first-time setup, leave Client ID and Secret blank to use the simplified device authentication flow.

Click Authenticate to proceed.

Step 3: Grant Permissions

You’ll be redirected to Microsoft’s consent page to grant the required permissions:

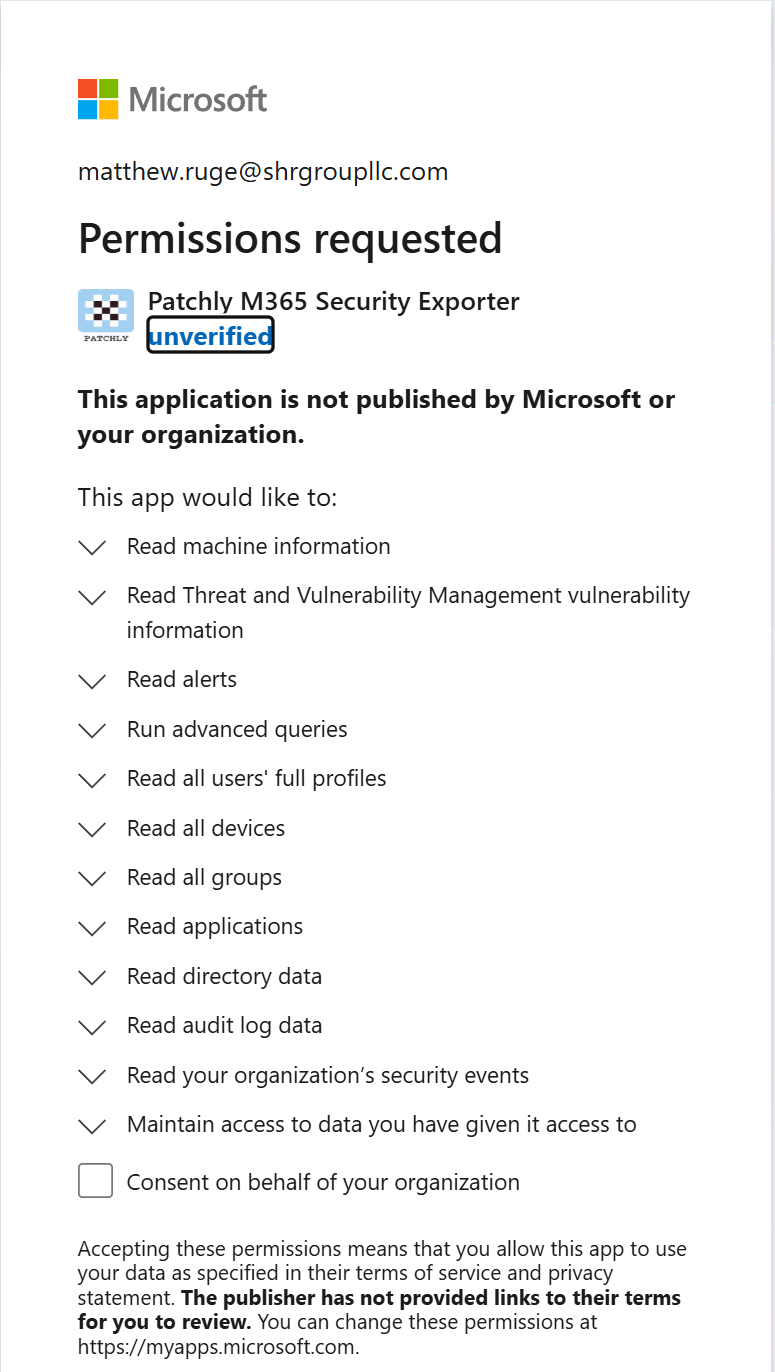

Microsoft Permissions Consent

The application requests permissions to:

Read machine information
Read Threat and Vulnerability Management data
Read alerts
Run advanced queries
Read user profiles, devices, groups, and applications
Read directory and audit log data
Read security events

Review the permissions and click Accept to grant consent on behalf of your organization.

Configuration

Environment Variables

Create a .env file or set environment variables:

# Required Azure AD settings
AZURE_TENANT_ID=your-tenant-id
AZURE_CLIENT_ID=your-client-id
AZURE_CLIENT_SECRET=your-client-secret

# Optional settings
EXPORT_OUTPUT_DIR=./data        # Output directory for exported data
EXPORT_FORMAT=json              # Output format: json, csv, parquet
BATCH_SIZE=100                  # Number of items per batch
CONCURRENT_REQUESTS=5           # Parallel API requests

Configuration File

Alternatively, use a config.yaml file:

azure:
  tenant_id: "your-tenant-id"
  client_id: "your-client-id"
  client_secret: "your-client-secret"

export:
  output_dir: "./data"
  format: "json"
  batch_size: 100
  concurrent_requests: 5

filters:
  start_date: "2024-01-01"
  end_date: "2024-12-31"
  users:
    - "user1@domain.com"
    - "user2@domain.com"

Usage

Basic Export

Export all data types for all users:

./m365-exporter --all

Export Specific Data Types

Export only emails:

./m365-exporter --type email

Export multiple data types:

./m365-exporter --type email,teams,sharepoint

Filter by Date Range

Export data within a specific date range:

./m365-exporter --type email --start-date 2024-01-01 --end-date 2024-12-31

Export for Specific Users

Export data for specific users only:

./m365-exporter --type email --users user1@domain.com,user2@domain.com

Incremental Sync

Perform incremental sync to export only new/changed data:

./m365-exporter --type email --incremental

The exporter maintains a state file to track the last sync timestamp.

Output Formats

JSON (Default)

{
  "id": "AAMkAGI2...",
  "subject": "Project Update",
  "from": {
    "emailAddress": {
      "name": "John Doe",
      "address": "john@domain.com"
    }
  },
  "receivedDateTime": "2024-01-15T10:30:00Z",
  "bodyPreview": "Here's the latest update..."
}

CSV

Flattened structure suitable for importing into spreadsheets:

id,subject,from_name,from_address,received_date_time,body_preview
AAMkAGI2...,Project Update,John Doe,john@domain.com,2024-01-15T10:30:00Z,Here's the latest update...

Parquet

Columnar format optimized for analytics:

Efficient compression
Fast query performance
Schema evolution support

Performance Optimization

Concurrent Requests

Increase parallel API requests for faster exports:

./m365-exporter --type email --concurrent 10

Note: Be mindful of Microsoft Graph API throttling limits.

Batch Size

Adjust batch size based on data volume:

./m365-exporter --type email --batch-size 500

Larger batches = fewer API calls, but more memory usage.

Filtering

Use filters to reduce the amount of data processed:

# Only export emails from the last 30 days
./m365-exporter --type email --start-date $(date -d '30 days ago' +%Y-%m-%d)

# Only export emails with attachments
./m365-exporter --type email --has-attachments

Error Handling

Retry Logic

The exporter automatically retries failed requests with exponential backoff:

Initial retry after 1 second
Max retry attempts: 3
Exponential backoff multiplier: 2

Error Logs

Errors are logged to exporter.log:

tail -f exporter.log

Throttling

If you encounter throttling errors:

Reduce --concurrent value
Reduce --batch-size value
Add delays between requests with --request-delay

./m365-exporter --type email --concurrent 2 --request-delay 1000

Data Privacy & Security

Credentials Security

Never commit credentials to version control
Use environment variables or Azure Key Vault
Rotate client secrets regularly (recommended: every 6 months)
Use certificate-based authentication for production

Data Encryption

All API requests use HTTPS (TLS 1.2+)
Exported data can be encrypted at rest:

./m365-exporter --type email --encrypt --encryption-key /path/to/key

Compliance

The exporter supports compliance features:

Audit logging of all export operations
Data retention policies
GDPR data subject request support

Monitoring & Logging

Progress Tracking

Monitor export progress with verbose output:

./m365-exporter --type email --verbose

Output includes:

Number of items processed
API request rate
Estimated time remaining
Error count

Metrics

Export metrics in Prometheus format:

./m365-exporter --type email --metrics-port 9090

Access metrics at http://localhost:9090/metrics

Troubleshooting

Authentication Errors

Error: AADSTS700016: Application not found

Solution: Verify your AZURE_CLIENT_ID is correct and the application exists in Azure AD.

Error: AADSTS7000215: Invalid client secret

Solution: Generate a new client secret in Azure AD and update your configuration.

Error: Insufficient privileges to complete the operation

Solution: Ensure your application has the required Microsoft Graph API permissions and admin consent has been granted.

Rate Limiting

Error: 429 Too Many Requests

Solution:

Reduce concurrent requests: --concurrent 2
Add request delay: --request-delay 2000
Check your tenant’s throttling limits

Data Export Issues

Issue: Missing emails or messages

Solution:

Verify the user has the appropriate license (E3/E5)
Check date range filters
Ensure application permissions include delegate access

Issue: Large exports timing out

Solution:

Use incremental sync: --incremental
Export in smaller date ranges
Export users in batches

Advanced Features

Custom Filters

Use JSON filter expressions:

./m365-exporter --type email --filter '{"importance": "high", "hasAttachments": true}'

Webhooks

Configure webhooks to receive notifications:

./m365-exporter --type email --webhook-url https://your-server.com/webhook

Database Integration

Export directly to a database:

./m365-exporter --type email --output-type mongodb --mongodb-uri mongodb://localhost:27017/mission-lens

Supported databases:

MongoDB
PostgreSQL
SQL Server

Best Practices

Schedule Regular Exports
- Use cron or Task Scheduler for automated exports
- Perform incremental syncs daily
- Full exports monthly for verification
Monitor Resource Usage
- Watch memory consumption for large exports
- Monitor disk space in output directory
- Track API quota usage
Security
- Use managed identities in Azure
- Store credentials in Azure Key Vault
- Enable audit logging
- Encrypt sensitive exports
Performance
- Start with conservative concurrency settings
- Gradually increase based on throttling
- Use Parquet format for large datasets
- Implement incremental sync strategy

Support

For issues or questions:

Check the Troubleshooting guide
Review GitHub Issues
Consult Microsoft Graph API documentation

Last updated: January 2025
